Visualitzacions

Les vistes són dibuixos d’una figura des de diferents perspectives. Les vistes són l’elevació (vista frontal), el perfil (vista lateral) i la planta (vista des de dalt). Concretament, utilitzarem el sistema europeu, que ordena la posició de les tres opinions de manera diferent del sistema nord -americà.

Aquest mètode per representar una figura tridimensional en diversos dibuixos s’anomena sistema diedral <https://es.wikipedia.org/wiki/system_di%C3%A9Drico> `__.

_images/dibujo-vistas.png

A continuació, es mostren exercicis per obtenir vistes d’una xifra, graduats en dificultat des del nivell bàsic fins al nivell més complex amb objectes corbats.

Tots els exercicis tenen una versió amb el Sistema Europeu de View (alçat a la dreta) i una altra versió poc convencional en la qual s’ha escollit l’elevació a l’esquerra de la figura i al perfil de la dreta.

Exercicis senzills

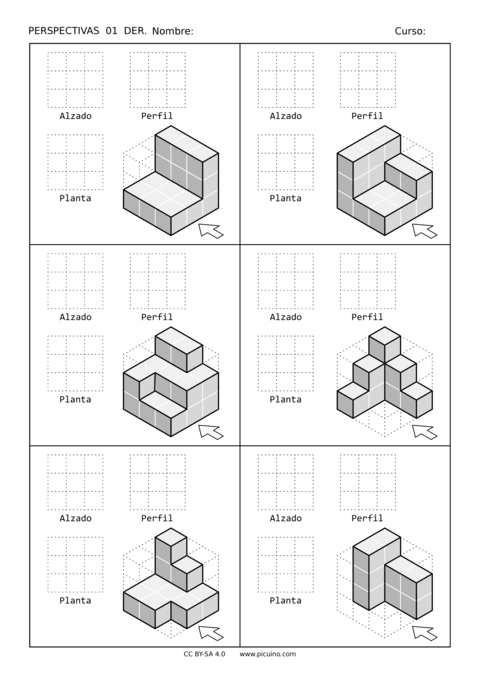

_images/dibujo-persp-der-01.png
: Descarregueu: Right Raised. Format PDF. <Dibuix/dibuix-vers-der-01.pdf>
: Descarregueu: Right Raised. Imatges en format PNG. <Dibuix/dibuix-versos-der-01-images.zip>
: Descarregueu: Right Raised. Format editable SVG. <Drawing/Drawing-Vista-der-01.svg>

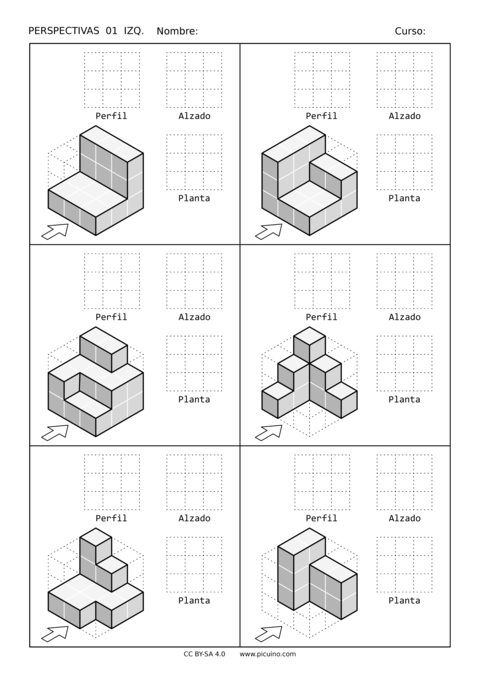

_images/dibujo-persp-izq-01.png
: Descarregueu: Left Lifting. Format PDF. <Drawing/Drawing-Verses-IZQ-01.pdf>
: Descarregueu: `Left Lifting. Imatges en format PNG. <Dibuix/Dibuix-Verses-IZQ-01-Imatges.zip> `
: Descarregueu: Left Lifting. Format editable SVG. <Drawing/Drawing-Verses-IZQ-01.svg>

Exercicis amb vistes ocultes

_images/dibujo-persp-der-02.png
: Descarregueu: Right Raised. Format PDF. <Drawing/Drawing-Duer-02.pdf>
: Descarregueu: Right Raised. Imatges en format PNG. <Dibuix/dibuix-versos-der-02-images.zip>
: Descarregueu: Right Raised. Format editable SVG. <Drawing/Drawing-Vista-der-02.svg>

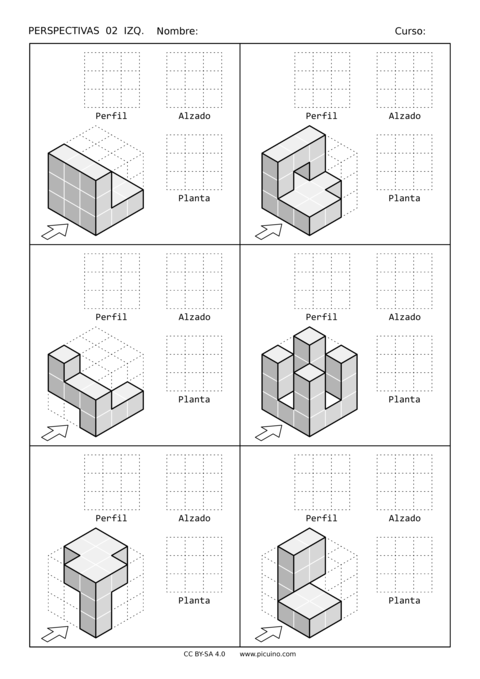

_images/dibujo-persp-izq-02.png
: Descarregueu: Left Lifting. Format PDF. <Dibuix/Dibuix-Verses-IZQ-02.pdf>
: Descarregueu: Left Lifting. Imatges en format PNG. <Dibuix/Dibuix-Verses-IZQ-02-IMages.zip>
: Descarregueu: Left Lifting. Format editable SVG. <Dibuix/Dibuix-Verses-IZQ-02.svg>

Exercicis amb rampes

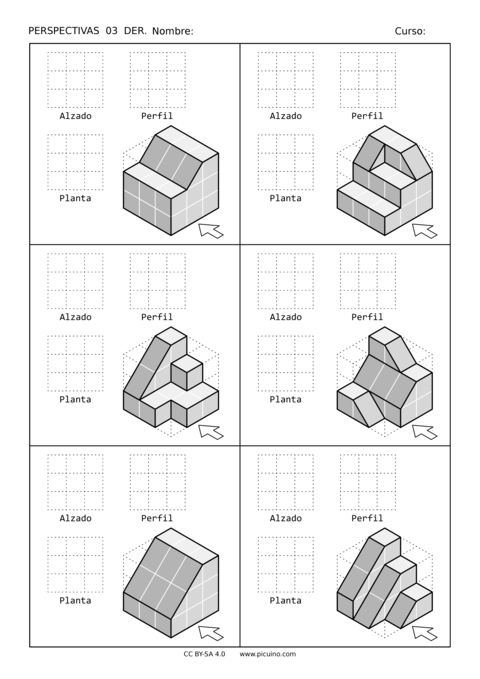

_images/dibujo-persp-der-03.png
: Descarregueu: Right Raised. Format PDF. <Drawing/Drawing-Vista-der-03.pdf>
: Descarregueu: Right Raised. Imatges en format PNG. <Drawing/Drawing-Vista-der-03-images.zip>
: Descarregueu: Right Raised. Format editable SVG. <Dibuix/dibuix-vers-der-03.svg>

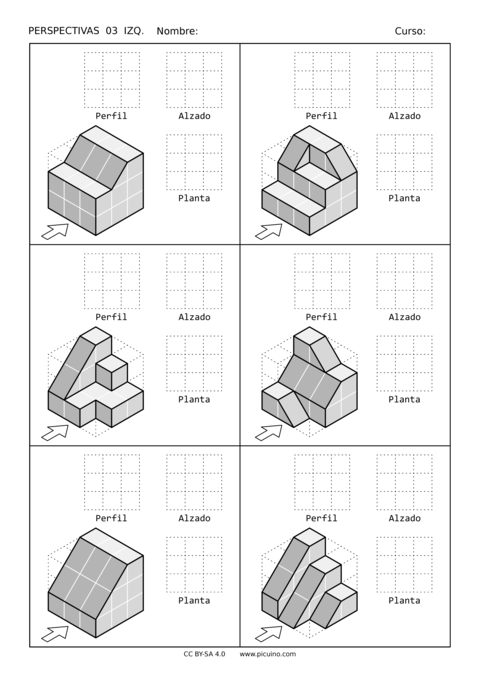

_images/dibujo-persp-izq-03.png
: Descarregueu: Left Lifting. Format PDF. <Drawing/Drawing-Verses-IZQ-03.pdf>
: Descarregueu: Left Lifting. Imatges en format PNG. <Dibuix/Dibuix-Verses-IZQ-03-Images.zip>
: Descarregueu: Left Lifting. Format editable SVG. <Dibuix/Dibuix-Verses-IZQ-03.svg>

Exercicis amb vistes i rampes ocultes

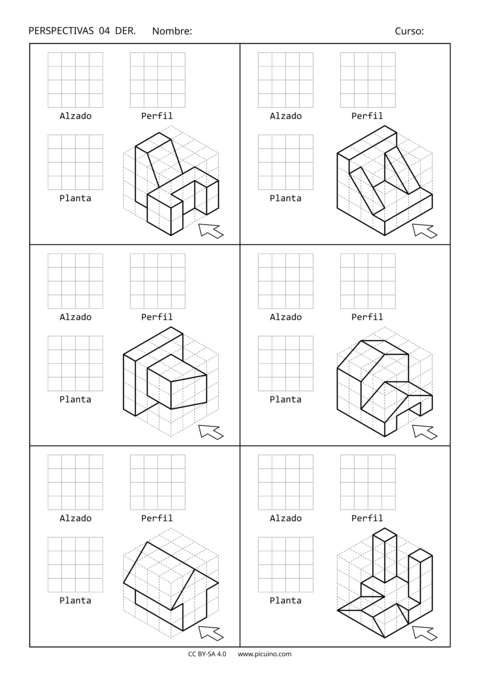

_images/dibujo-persp-der-04.png
: Descarregueu: Right Raised. Format PDF. <Dibuix/dibuix-vers-der-04.pdf>
: Descarregueu: Right Raised. Imatges en format PNG. <Dibuix/dibuix-versos-der-04-images.zip>
: Descarregueu: Right Raised. Format editable SVG. <Dibuix/dibuix-deu a-04.svg>
_images/dibujo-persp-izq-04.png
: Descarregueu: Left Lifting. Format PDF. <Dibuix/Dibuix-Verses-IZQ-04.pdf>
: Descarregueu: Left Lifting. Imatges en format PNG. <Dibuix/Dibuix-Verses-IZQ-04-IMages.zip>
: Descarregueu: Left Lifting. Format editable SVG. <Dibuix/Dibuix-Verses-IZQ-04.svg>

Exercicis amb corbes

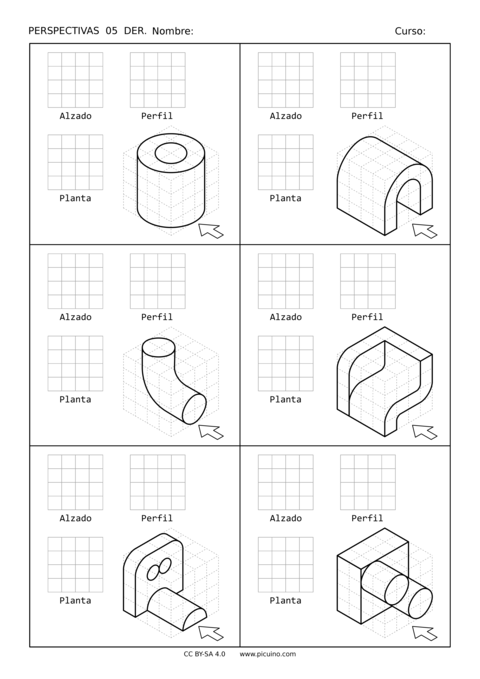

_images/dibujo-persp-der-05.png
: Descarregueu: Right Raised. Format PDF. <Dibuix/dibuix-versos-der-05.pdf>
: Descarregueu: Right Raised. Imatges en format PNG. <Dibuix/dibuix-deu a-05-images.zip>
: Descarregueu: Right Raised. Format editable SVG. <Drawing/Drawing-Vista-der-05.svg>

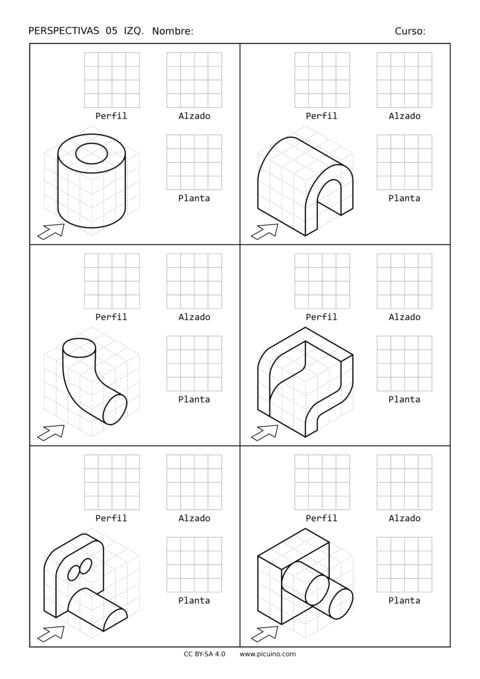

_images/dibujo-persp-izq-05.png
: Descarregueu: Left Lifting. Format PDF. <Dibuix/Dibuix-Verses-IZQ-05.pdf>
: Descarregueu: `Left Lifting. Imatges en format PNG. <Dibuix/Dibuix-Verses-IZQ-05-Imatges.Zip> `
: Descarregueu: Left Lifting. Format editable SVG. <Dibuix/Dibuix-Verses-IZQ-05.svg>

Plantilles de dibuix

_images/dibujo-plantilla-isometric-4-der.png
: Descarregueu: Right Raised. Format PDF. <Drawing/Drawing-Plantilla-Isometric-4-Der.pdf>
: Descarregueu: Right Raised. Format editable SVG. <Dibuix/Dibuix-Plantilla-Isomètric-4-Der.svg>
_images/dibujo-plantilla-isometric-4-izq.png
: Descarregueu: Left Lifting. Format PDF. <Drawing/Drawing-Plantilla-Isometric-4-IZQ.PDF>
: Descarregueu: Left Lifting. Format editable SVG. <Drawing/Drawing-Plantilla-Isometric-4-IZQ.SVG>

Tres de paper dimensional

Exercicis per construir tres dimensions amb paper retallat (Papercraft) al taller de tecnologia:

: Ref: Workshop-Papercraft
